Who is a common Paddle Concrete Mixer User?
Producers who require a paddle mixer are generally looking for smaller output capacities from 9 cu.ft./254 Lt (300 lbs./136 kg.) to 36 cu.ft. / 1019 Lt (3,000 lb. / 1361 kg.) for mixing concrete, refractory, mortar and specialty mixes. In most cases these users want the capability of having a mixer that can to be installed in permanent factory setup. However they also want the versatility for a unit that can be converted into a portable mixer and be installed and operated on the jobsite. Do you require any of these abilities for a mixer? If so the paddle system mixer may be a good choice for you to consider and you should decide which size makes the most sense for your application and needs.

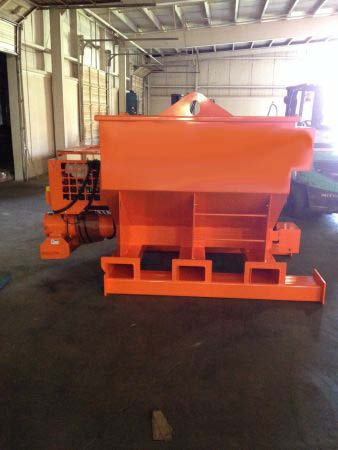

Paddle Concrete Mixers are a versatile mixer that can be converted into a portable unit for mixing concrete, mortar and specialty mixes.
Our mixers are used in many industries and applications:
- Concrete block Industry
- Glass and ceramics Industry
- Concrete brick Industry Refractory Industry
- Veneer Stone Producers Interlocking paving Stone Industry
- Powder & Color blending
- Calcium – Silicate brick Industry
- Pre-cast concrete Producers
- Lightweight concrete product users
- Statuary concrete Producers
- Pre-stressed concrete Industry
- Colored and multi-colored bricks
Main Paddle Concrete Mixer Features Include:
Blends consistent Homogeneous top quality mix
Quality built, USA Made
1 year Warranty
Variable Speed Paddle Speed Controls to perfectly customize to your mix.
Fast mixing time
Forced cross action mixing action
Reversible mixing paddle prevent clogging
Adjustable legs for mixer height and outriggers for stability
Metered water input systems
Hydraulic Pump and Drive
Bolt-in replaceable hardened steel abrasion resistant drum liners
Low Profile design
Fast water metered dispersion
Maximum access in mixing area for easy cleaning
Patented Rubber Blades provide Longer wear Life
High quality lost cost wear part for low maintenance costs
Vertical paddle orientation to cut through material for a homogeneous mix
Loads material into mixer waist level & dumps mix out high to lessen backaches
Low profile design.
Mixers are available in single phase or 3 phase electric motors.
Standard Sized Mixers
GM-RMH9
o 300 lb. ( 136 kg.) drum capacity
o 7.5 HP electric motor
GM-RMH9
o 300 lb. (136 kg.)drum capacity
o 7.5 HP electric motor
GM-RMH12
o 500 lb. (1,102 kg.)) drum capacity
o 10 HP electric motor
GM-RMH12HD
o 750 lb. (1,653 kg.)drum capacity
o 15 HP electric motor
Concrete Paddle Mixer has intense cross mixing rotation action to make great mix.
GM-RMH20
o 1,000 lb. (2,204 kg.) drum capacity
o 20 HP electric motor
GM-RMH29
o 2,000 lb. (4,409 kg.) drum capacity
o 40 HP electric motor
GM-RMH36
o 3,000 lb. (6,613 kg.) drum capacity
o 50 HP electric motor
The Mud Master® – The most durable, best designed mixer on the market!
- Triple use: Mortar, Grout, and Concrete
- Hydraulic dump and drive
- Reversible mixing paddles to prevent clogging
- Loads below waist level and dumps high to lessen the backaches
- Included tow package with highway tires and torsion axle for smoother suspension
- Designed to pull from the side so that wheels are out of the way of wheelbarrow or the forks on a forklift
- Easier to back into sand pile
- Fits through 36” door
The Mud Master durable concrete mixer built for dirty environments for mixing grout, mortar and concrete.
Mud Master Concrete Mixers are offers in many sizes.
GMH12 o 500 lb. (227 kg.) drum capacity o 10 HP electric motor
Concrete mixers are available in gas or electric powered.
GMH12HD
o 750 lb. (340 kg.) drum capacity
o 15 HP electric motor
Concrete Mixers are compact, portable and durable.
GMH20
o 1,000 lb./ ( 454 kg.) drum capacity
o 20 HP electric motor
GMH29
o 2,000 lb. ( 907 kg.) drum capacity
o 40 HP electric motor
GMH36
o 3,000 lb. (1361 kg.) drum capacity
o 50 HP electric motor
The Precast Bull Dog®
Hydraulic, Electric, or Gas Powered
- Drastically cuts vibrating and placement time of concrete.
- 4 to 5 slump? No problem
- Labor saving and increased production
- Sizes up to 3 cubic yards
- Less mess and less waste
- Moves easily from point to point
- Removable auger for easy clean-up
- Horizontal and uphill auger configurations
- Standard capacity 3/4 yd3 (.57 m3)
- Standard material discharge rate of 3/4 yd3 in 2 1/2 minutes
- Remote control operation (forward/reverse of auger)
- 8 foot (2.44 m) reinforced, collapsible dispensing hose 4 inch(10mm) diameter
- Hydraulic flow rate 10 gpm @ 2000 psi
- Handles up to 3/4 inch (1.91 cm) aggregate (Standard)
- Standard empty weight 985 lbs. (446 kg)
- Standard gross weight 3885 lbs. (1807 kg)
- Standard overall dimensions (LxWxH)
- 92 x 41.5 x 49 inches (233x105x124cm)
Photos
The Precast Bull Dog is perfect way to dispense concrete, grout or mortar in stationary or portable applications.
If you would like to see a video of the Precast Bull Bog in action making veneer stone products give me a call at 314-960-0540 and I can send you a video once I know more about your needs and applications.
Precast Bull Dog is widely used is the production of concrete veneer stone and landscape products.
The uphill Bull Dog is a total portable for angering mortar or sand.
The Uphill Bull Dog®
Hydraulic or Gas Powered – Optional Lifting Bale
- Extended auger tube saves several feet of boom extension on your forklift
- Grout from the scaffold side even easier and safer than before
- Simple, dependable, and time-saving
- No more lugging around 5 gallon buckets
- Only requires 2 people for complete masonry block fill; One to guide the hose, the other to drive the forklift
- Reach 17 feet (5.1 Meter) of work area without moving the forklift with the unique swivel base
- Removable auger allows for clean-ups in under 15 minutes
- Field-tested in thousands of on-the-job applications
- Can also deliver sand and other dry materials
Uphill Bull Dog only needs two people to operate. One to guide the hose, the other to drive the forklift.
Using the Uphill Bull Dog saves labor moving sand, mortar,dry and other semi-dry concrete materials.
